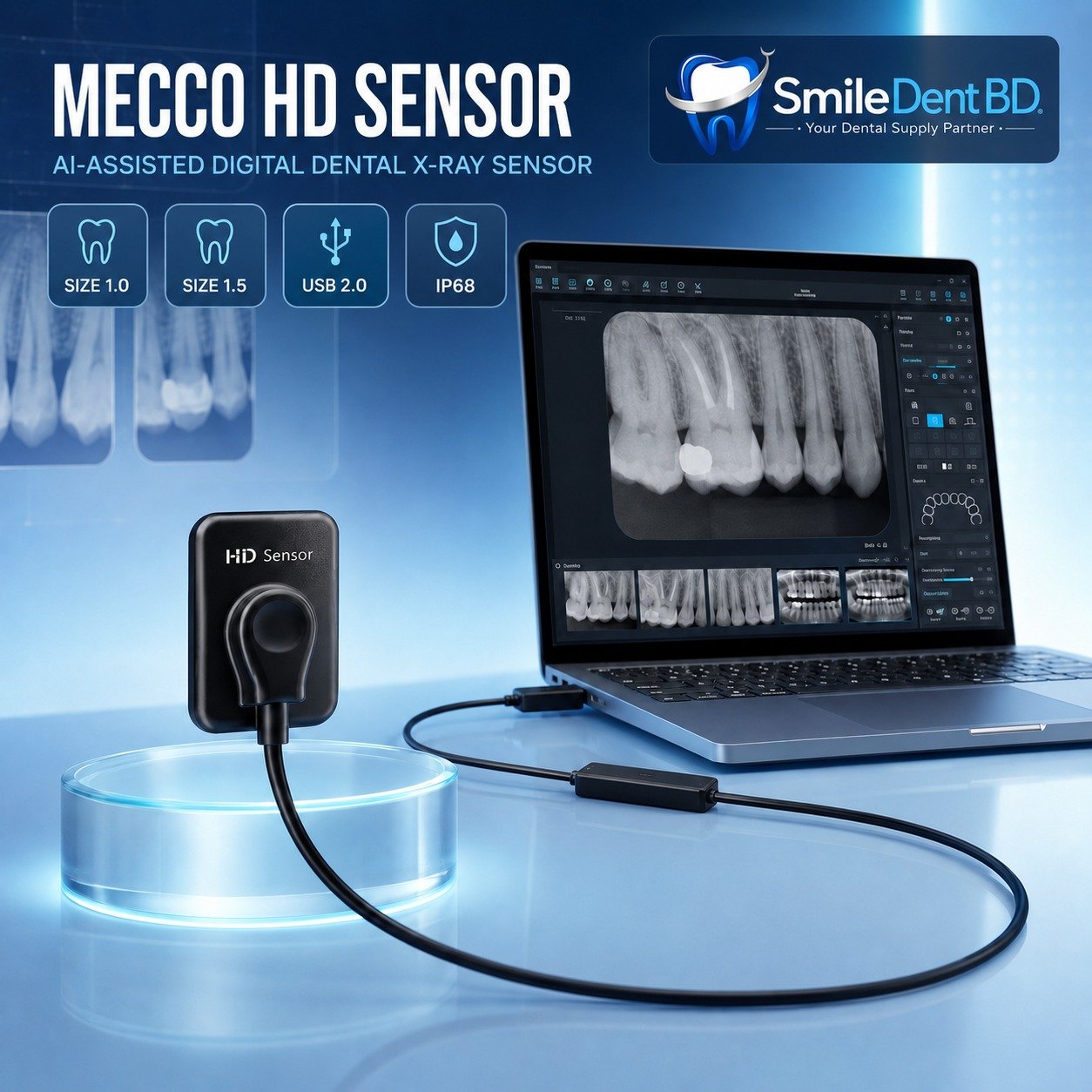

MECCO HD Sensor

The MECCO HD Digital Dental X-Ray Sensor provides rapid chairside capture of high-definition intraoral radiographs without conventional film processing. Its direct-conversion APS CMOS technology produces detailed digital images that can be viewed and managed on a compatible Windows computer.

The included imaging software provides AI-assisted visualisation tools designed to support the clinician during image review. These features can highlight areas of interest and help improve the presentation of radiographic information, but they do not replace professional clinical interpretation or diagnosis.

Two sensor sizes are available. Size 1.0 is suitable for smaller mouths and many paediatric applications, while Size 1.5 provides a larger imaging area for general adult and paediatric workflows.

The ergonomic curved-back design supports stable positioning while helping reduce patient discomfort. Its IP68-rated housing provides protection against dust and water during approved cleaning and disinfection procedures.

For demanding daily use, the sensor is tested for more than 500,000 exposures. The reinforced cable is designed to withstand over 100,000 bending cycles and up to approximately 10 kg of pulling force under specified test conditions.

Key Features

• Direct digital intraoral X-ray capture
• AI-assisted image-review software
• Direct-conversion imaging technology
• APS CMOS sensor
• 20 μm pixel pitch
• 16-bit dynamic range
• Actual resolution of approximately 12–14 lp/mm
• Images available in approximately 3 seconds
• USB 2.0 computer connection
• IP68 dust and water resistance
• Two sizes: 1.0 and 1.5
• Ergonomic curved-back design
• Suitable for adult and paediatric patients
• Tested for over 500,000 exposures
• Reinforced cable tested for over 100,000 bends
• Listed pull resistance up to approximately 10 kg
• 3-metre extendable cable
• Free software updates and technical support, subject to supplier terms

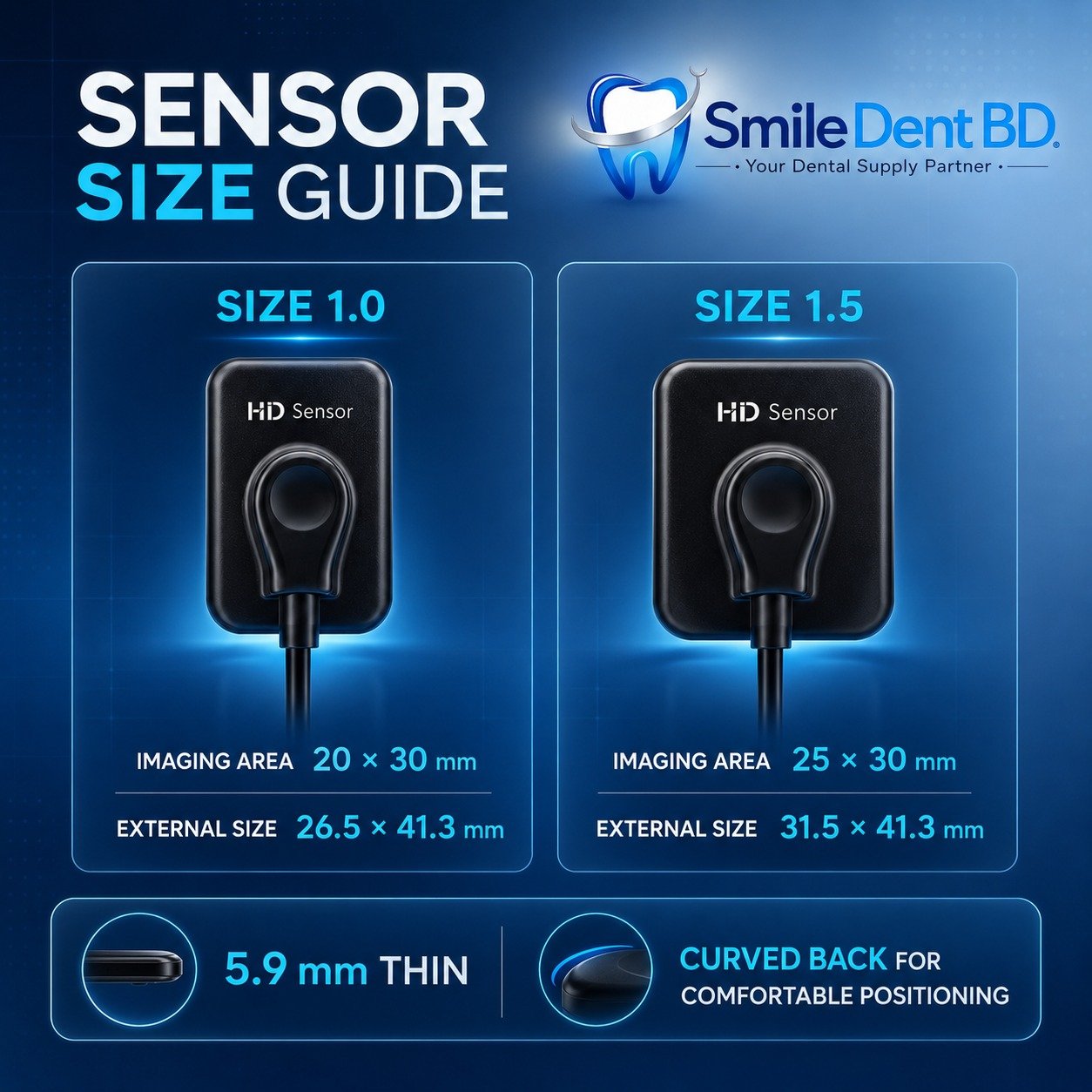

Available Sizes

Technical Specifications

Specifications were cross-checked against the MECCO HD Sensor brochure and this detailed technical product listing.

Clinical Applications

• Intraoral periapical imaging
• Bitewing radiography
• Endodontic working-length evaluation
• Root-canal treatment monitoring
• Caries assessment support
• Periodontal bone evaluation
• Implant-position assessment
• Preoperative and postoperative imaging
• Adult and paediatric dental radiography
• Digital patient record documentation

Package Contents

The standard package may include:

• 1 × MECCO HD Sensor in the selected size
• 1 × Integrated 3-metre USB cable
• 1 × USB interface or connection module
• Dental imaging software or download access
• Software driver
• Installation guide
• User manual

Sensor holders, positioning accessories and disposable protective sleeves may be sold separately. Confirm the supplied package before publishing.
